YA-D5-2 Motorized Orthopedic Hospital Bed 5 Function
  • YA-D5-2 Motorized Orthopedic Hospital Bed 5 Function
  • YA-D5-2 Motorized Orthopedic Hospital Bed 5 Function
  • YA-D5-2 Motorized Orthopedic Hospital Bed 5 Function
  • YA-D5-2 Motorized Orthopedic Hospital Bed 5 Function

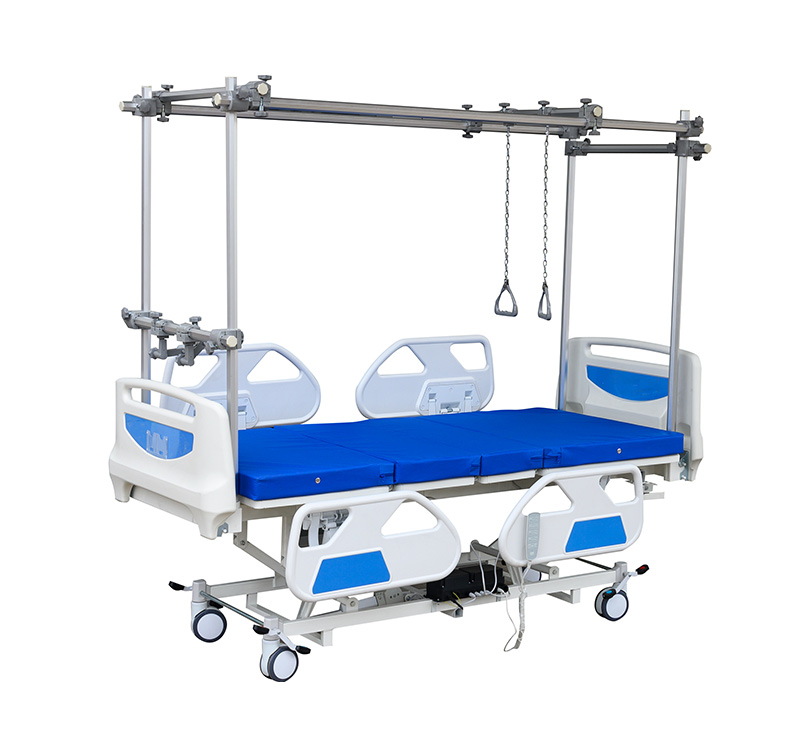

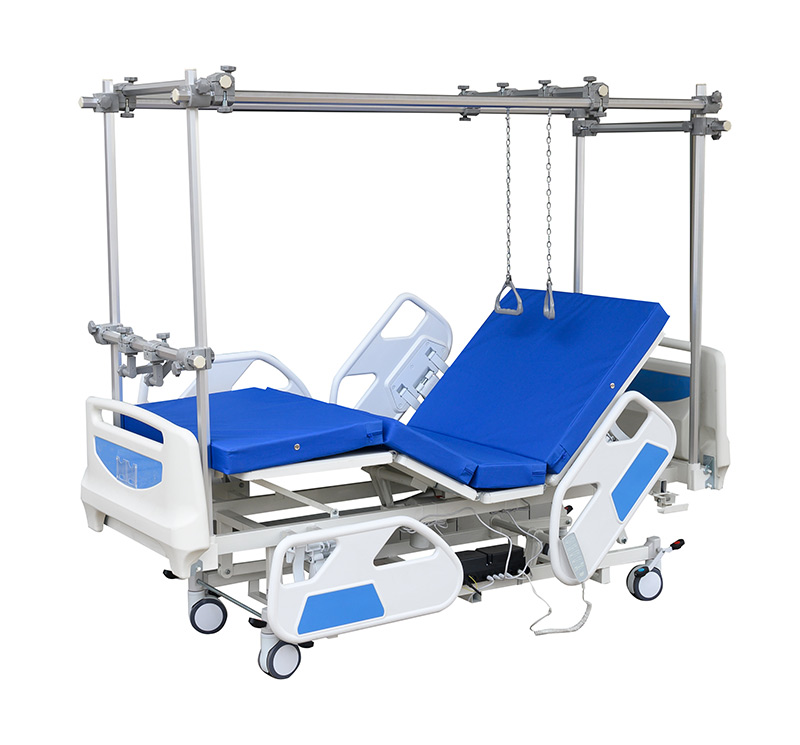

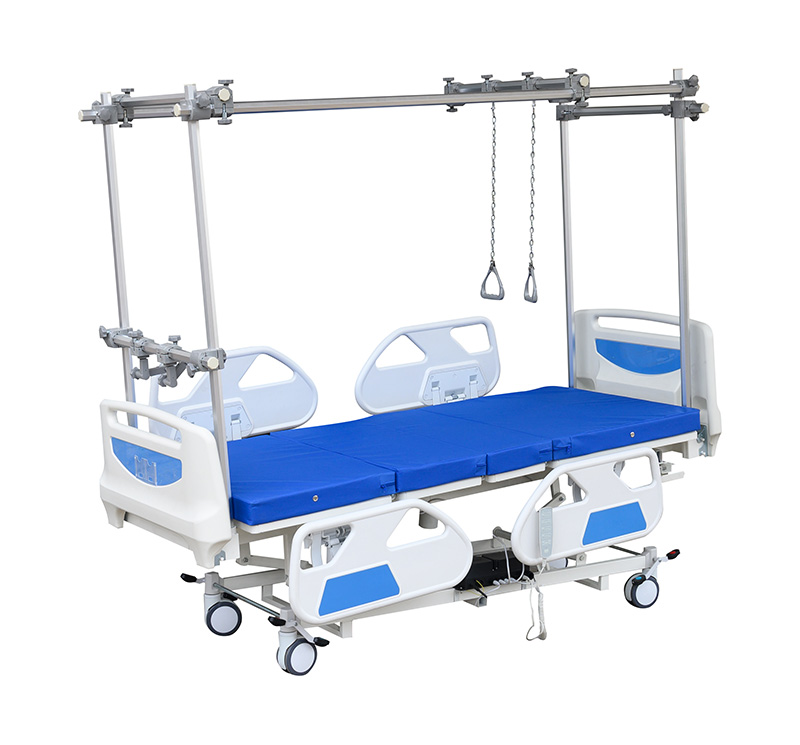

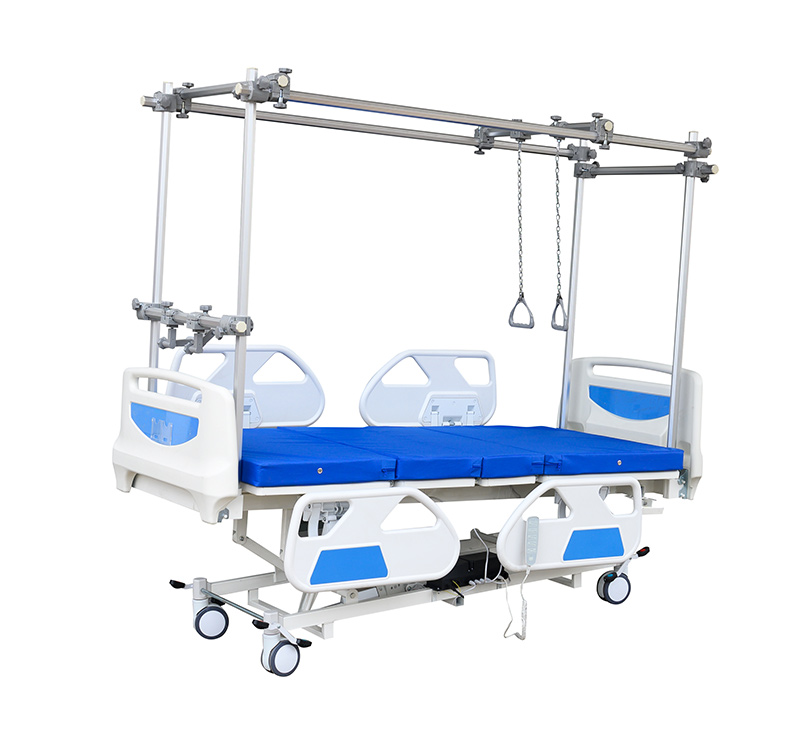

YA-D5-2 Motorized Orthopedic Hospital Bed 5 Function

share

Model:YA-D5-2

Overall Size:2270*1060*450-725mm

Loading capacity:205kg

Function:Back section adjustable, Knee section adjustable,High-Low,Trendelenburg,Revere- Trendelenburg

Certificate: ISO/CE



  • Product Details
  • Downloads

Watch Video


Orthopedic Traction Bed is designed for diagnosis, orthopedic surgeries, correction, traumatic treatment for the patient with disorders of the bones, joints, muscles, ligaments, tendons. Multiple function and the accessories perform expanding traction to different parts of the vertebra and the extremities without moving the human body.

Main feature

- Detachable head/foot board with easy lock

- Manual CPR on both sides(optional)

- Central brake system on four corner

- Hand remote control

——四分裂护栏,下降wn under the bed platform

- Leg and hand traction frame

Technical parameter

Model YA-D5-2
Size 2270*1060*450-725mm
Backrest adjustment 0-80°
Footrest adjustment 0-40°
Height adjustment 450-725
Trendeleburg 0-12°
Revere- Trendelenburg 0-12°
Loading capacity 205kg
